HR CR SS PPGI MS etc coil strip slitter line from uncoiler leveling slitting and recoiler full line for sale

  • >=1 Sets
    $172,000.00
Model Number:
SP-slitting
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 130 Negotiable
Report Suspicious Activity
Overview
Quick Details
Material Thickness(mm):
0.3 - 20
Cutting Width (mm):
1 - 10
Cutting Speed(m/min):
30 - 120
No. of Slitting Lines:
8 - 25
Coil Weight (T):
25
Applicable Industries:
Energy & Mining, Construction works , Restaurant, Building Material Shops, Advertising Company, Machinery Repair Shops, Manufacturing Plant
Place of Origin:
Jiangsu, China
Brand Name:
SINOPOWER
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Warranty:
1 Year
Condition:
New
Voltage:
320v/50hz
Rated Power:
320kw
Dimension(L*W*H):
30*10m
Certification:
ce
Key Selling Points:
High Safety Level
Name:
steel slitting machine line
Steel Coil Weight:
15-35 tons
Steel Coil Material:
SS,CS,GI,PPGI,HR,CR,Aluminum,Copper
Steel Coil Width:
800-2200 mm
Steel Coil Thickness:
0.3~20 mm
Slitting Accuracy:
±0.03mm
Number of strip:
5-25 pcs
Line Speed:
0-120 m/min
Electrical Control System:
PLC Automatic Control
Supply Ability
Supply Ability:
300 Set/Sets per Year
Packaging & Delivery
Packaging Details
Electric cabinets, spare parts will be packaged by steel-box.
Machines will be loaded into 40HQ containers and fixed by steel wire.
sheet metal slitter machine steel coil for sale Copper GI steel coil slitting machine metal steel coil
Port
Shanghai port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 130 To be negotiated
Product Category

Steel pipe making machine.

ERW welded pipe / tube making.

Used for building, scaffolding, furniture, cars, water, gas...etc

Metal roll forming machine.

Steel profile product roll forming machine.

Model: C/Z Purlin, roofing/wall panel, gutter, downspout, keel steel, strut....

Coil cut to length line.

Cutting  metal coil to sheet plate .

Thickness from 0.2 to 25mm. Coil width customized

Why Choose us?

1.30 years in metal processing equipment development


2.15 years export experience, serves hundreds clients in 40 countries

3.Top engineer team, advanced production process, maximize returns for client.

4.24 hours online service, excellent service system

Slitting Machine

Sheet metal steel strip slitting machine sheet metal steel coil slitter machine steel coil cutting machine

Supplied Machine: metal coil slitting machine line
SINO POWER slitting is applicable to coils of various specifications. aluminum slitting is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. stainless steel slitting has advantages such as proper layout, easy operation, highly automated and high production efficiency.


1: Specification of metal steel coil slitting machine line

Model
SP0.3-3.0x1600
SP0.8-5.0x1600
SP1-6x2000
SP2-8x2000
SP3-12x2200
SP4-16x2200
Coil material
SS / CS / GI/ PPGI /HR / CR /Aluminum /Copper
Thickness
0.3-3.0mm
0.8-5.0mm
1-6mm
2-8mm
3-12mm
4-16mm
Coil width
800-1600mm
900-2000mm
900-2200mm
Coil weight
≤20T
≤30T
≤35T
Decoil I.D
508mm,610mm,760mm
Recoil I.D
≤2000mm
≤2200mm
≤2200mm
Strip Width
≥20mm
≥30mm
≥40mm
Number of strip
5-35
3-10
3-7
Slitting accuracy
±0.03mm
±0.05mm
±0.05mm
Single side straightness
<0.3mm/min
<0.3mm/min
<0.3mm/min
Line speed
0-120m/min
0-80m/min
0-40m/min
Electrical control system
PLC automatic control
PLC automatic control
PLC automatic control

Above are our standard series, we also accept customized. We have 0.3-3.0, 0.8-5.0, 1-6mm, 2-10mm, 3-12mm, 4-16mm, 5-20mm,etc.

2: Whole review of slitting machine

3. Flow Chart & Machine

Hydraulic bracket-Carrying coil car-Hydraulic single arm decoiler-Feeding guide plate fitting-pinching machine,coil head shearing-Front looping table-Side guiding fitting-Disc shear-Curling machine-Back looping table-Tension table-Recoiler-Discharging car-Hydraulic bracket-Hydraulic control-Electric control

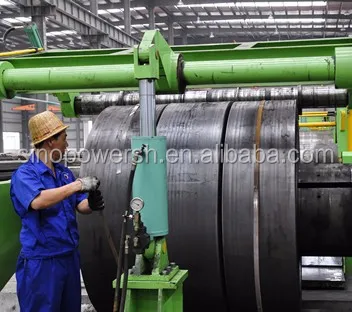

Step 1:   Uncoiling of slitting machine line

Step 2: Leveling of slitting machine line

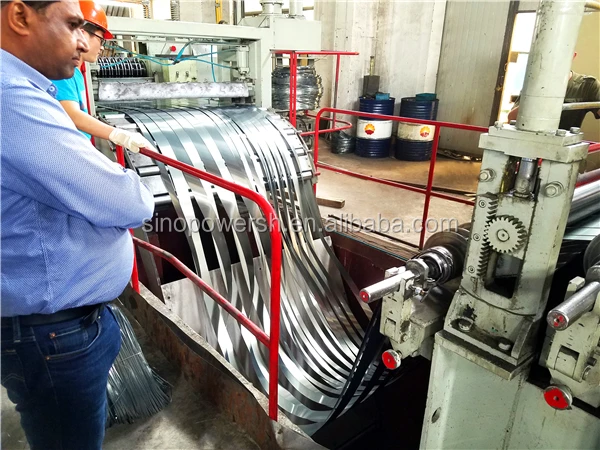

Step 3: Slitting of slitting machine line

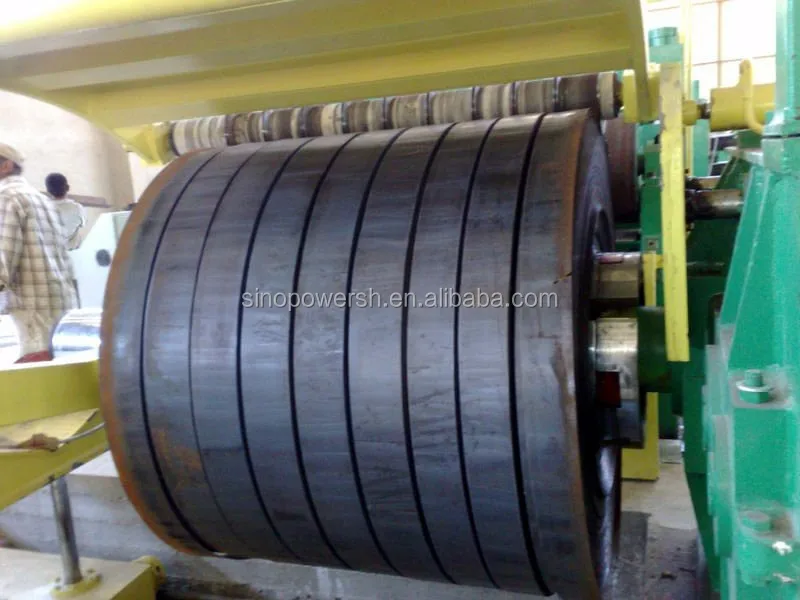

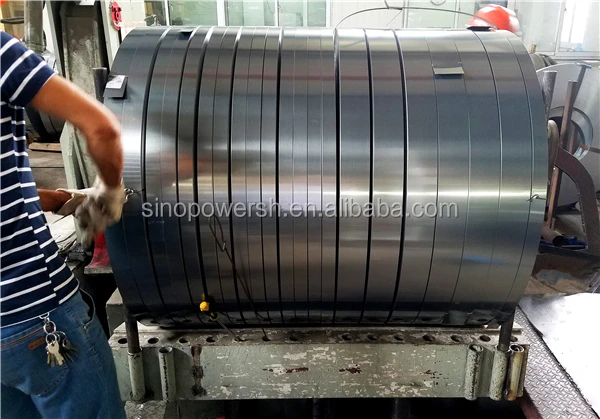

Step 4: rewinding of slitting machine line

4. Production Line at Site

Machine Photos
